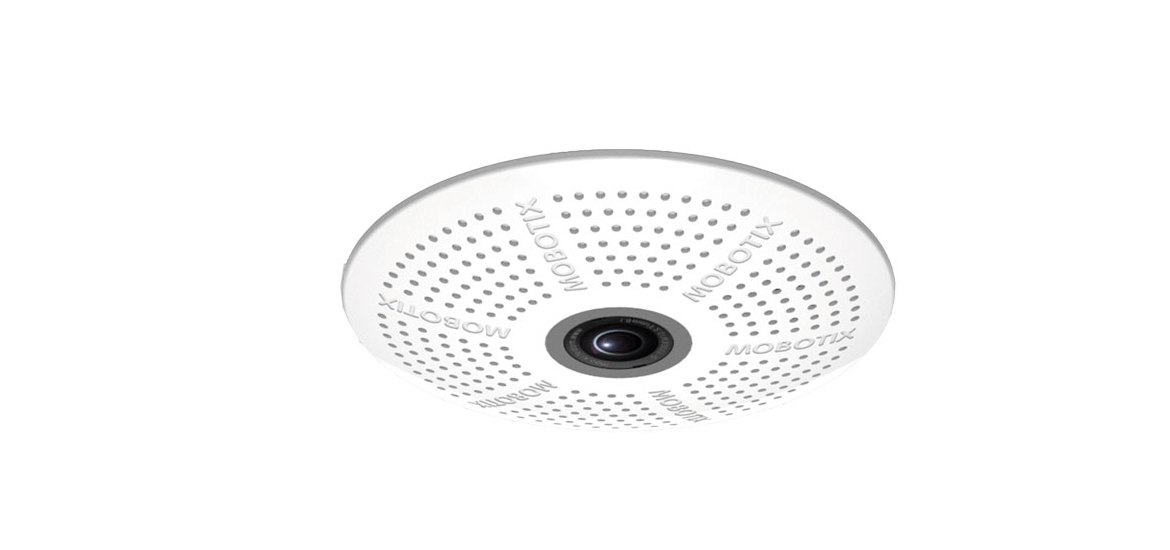

Hemispheric C25

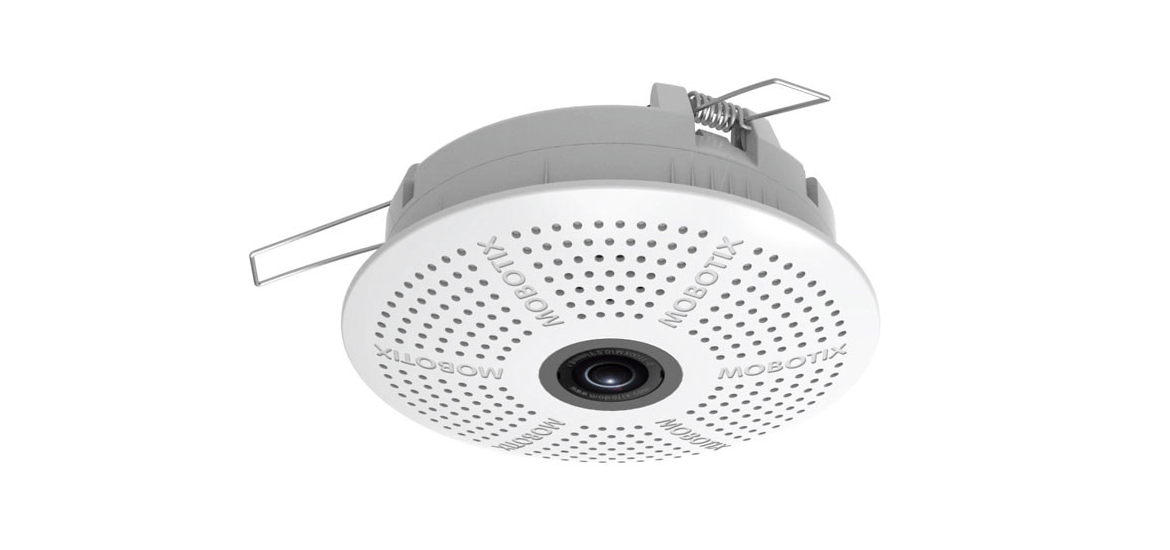

The c25 is our smallest 5MP hemispheric camera and comes with three clamps for easy installation in suspended ceilings like a halogen downlight. Alternatively equipped with a telephoto lens and mounted above a cash box the c25 will provide a very detailed video of the content and allows even reading the serial numbers of the bank notes.

With a diameter of only 12 centimeters/4.7 inches and a weight of approximately 200 grams, the new c25 is the smallest and lightest Hemispheric MOBOTIX video complete system yet for ceiling mounting indoors (protection class IP20, 0 to 40 °C/32 to 104 °F). Standard features include a light-sensitive 5MP day or night sensor, a microSD memory card, an HD sound microphone and the latest camera software including MxActivitySensor and the MxAnalytics video analysis tools (person and object counting, heat map display of high-traffic areas). The integrated Lowlight Exposure Optimization MxLEO facilitates high-contrast images without motion blur, even in poorly illuminated surroundings.

Simple Installation In Suspended Ceilings

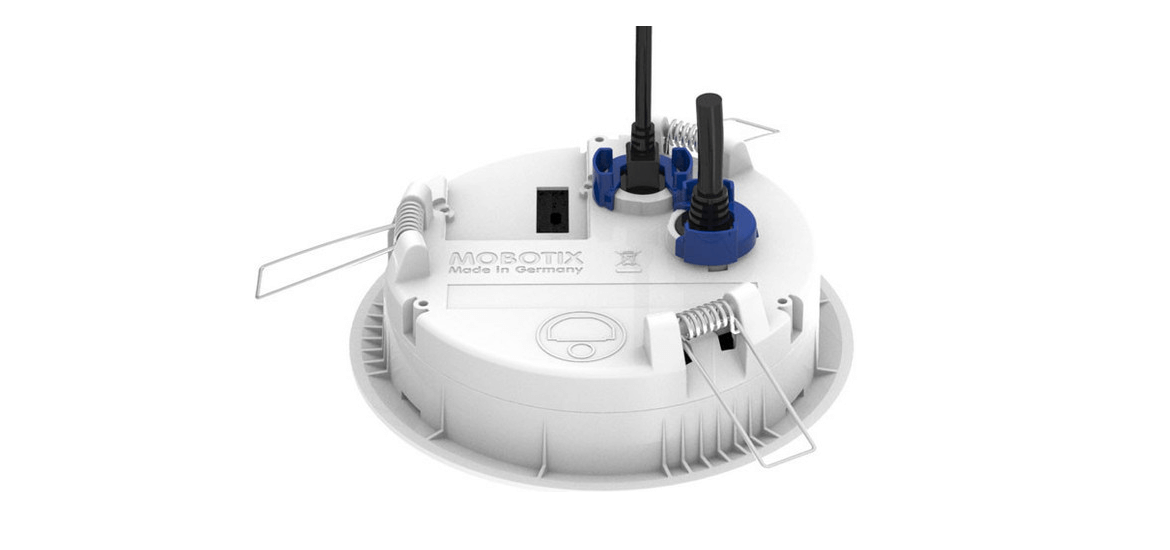

The c25 is suitable for installation in ceiling panels with a maximum thickness of 26 millimeters, in which a circular opening with a diameter of 105 mm is cut using a standard power drill head. The camera connected to the Ethernet cable is simply slotted in from below using raised spring clips.

Typical Application Areas For The c25

Indoor applications in retail, supermarkets, public buildings, trade fair and exhibition spaces, hotels, recreation facilities, in residential buildings and for the surveillance of industrial production processes.
