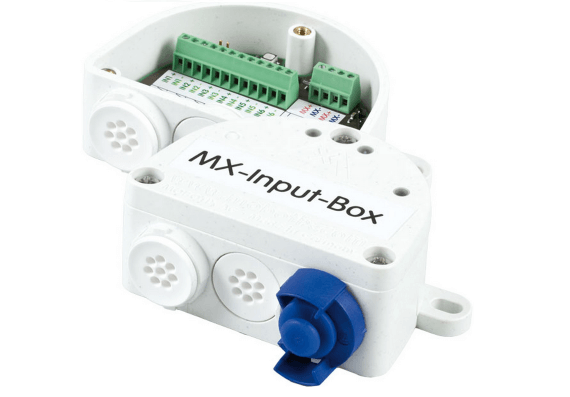

• Weatherproof interface box (IP65, -30 °C to +60 °C (-22 °F to +140 °F)) with six self-powered inputs
• Simple and fast camera connection via a two-wire MxBus cable (up to 50 m)
• Flexible camera sensor expansion by connecting up to 6 external sensors per box (e.g., window/door contacts, light barriers etc.)
• Intelligent communication with cameras and MxBus modules in common network via MxMessageSystem
Article No: MX-OPT-Input1-EXT

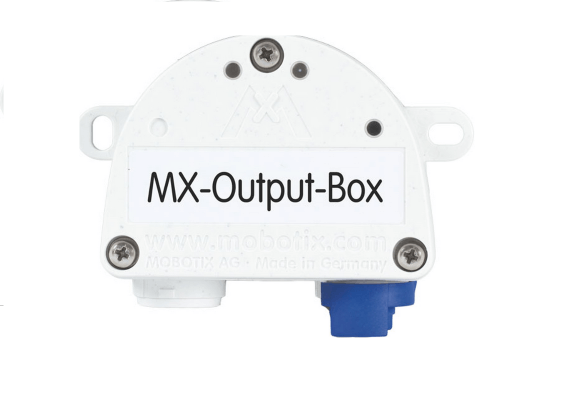

• Weatherproof interface box (IP65, -30 to +60 °C (-22 to +140 °F)) with eight outputs
• Simple and fast camera connection via a two-wire MxBus cable (up to 50 m)
• Flexible system expansion with connection of up to eight peripheral devices per box (e.g., power relay for lighting, garage door drive, blinds, etc.)
• Up to eight self-powered outputs or six self-powered outputs and two isolated outputs
• Intelligent communication with cameras and MxBus modules in common network via MxMessageSystem
Article No: MX-OPT-Output1-EXT

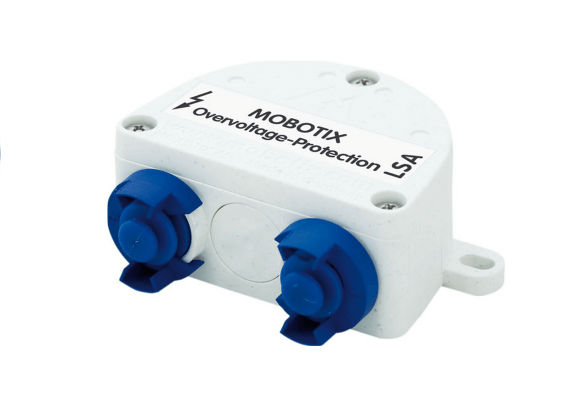

• Surge protection for MOBOTIX IP Cameras
• Protects against surges of up to 4 kV on the PoE network cabling
• For patch cable to patch cable or patch cable to installation cable (MX-Overvoltage-Protection-Box-LSA)
• Complete set including mounting supplies
• Weatherproof network connector (IP65) with surge protection of up to 4 kV for MOBOTIX IP cameras; ideal for replacing MX-Patch-Box
Surges are voltages that exceed the allowed voltage range for MOBOTIX IP cameras. The max. voltage for PoE, for example, is 57 V. Surges do not necessarily result in irreparable damages to MOBOTIX IP cameras. Only if the voltage is exceeded by a multiple of the allowed value, or if the surge is present for a longer period of time or even permanently, damages are unavoidable.
Examples for Causes of Surges:
• Direct lightning strike into the installation itself or the network cable
• Lightning strike into the power supply or the ground in the vicinity (within a radius of 100 km/62 mi)
• Switching of high loads, especially if network and power lines run side-by-side
Note:
• The cable between the MX-Overvoltage-Protection-Box and the MOBOTIX camera must not be longer than 50 cm/19.7 in.
• An MX-Overvoltage-Protection-Box protects against surges of up to 4 kV on a network patch or installation cable, but not against direct lightning strikes.
Surge Protection:
In order to reduce the danger of damages resulting from surges, a specialist should establish a surge protection concept and implement such a system. Such a system consists of several surge protection zones, where each zone contains specific and generally applicable countermeasures. These range from lightning capture devices and double-shielded network cables to fine-level surge protection for end devices. When selecting the countermeasures, not only technical, but also economical aspects need to be considered in order to find the proper balance between protection and costs.The MX-Overvoltage-Protection-Box-RJ45 and MX-Overvoltage-Protection-Box-LSA can be used in most of the protection zones and provide a cost-efficient protection against surges. It is generally recommended to install an MX-Overvoltage-Protection-Box if MOBOTIX cameras are installed outside of buildings. These devices protect MOBOTIX cameras against short surges of up to 4 kV.
Article No: MX-Overvoltage-Protection-Box-RJ45, Patch cable <> patch cable (RJ45)
Article No: MX-Overvoltage-Protection-Box-LSA, Patch cable <> Network installation cable (LSA)

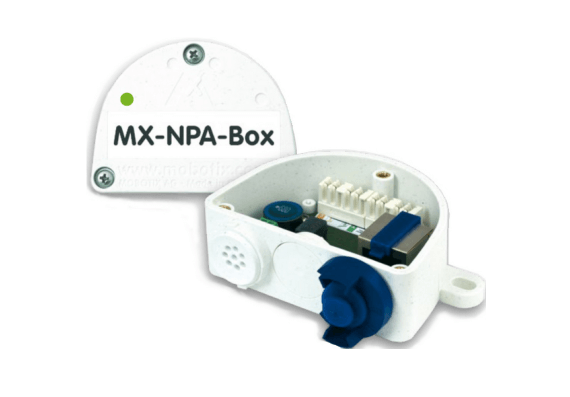

Weatherproof PoE Injector and network connector (-30 to +60 °C / -22 to +140 °F; IP65). IEEE 802.3af Network Power Adapter (NPA) for power supply by external power supply units and batteries from 12 to 57 V DC.
• Weatherproof power supply, e.g. for an IP camera
• Complete set including assembly parts
Important: Currently you can only use original MOBOTIX patch cables.
Article No: MX-OPT-NPA1-EXT

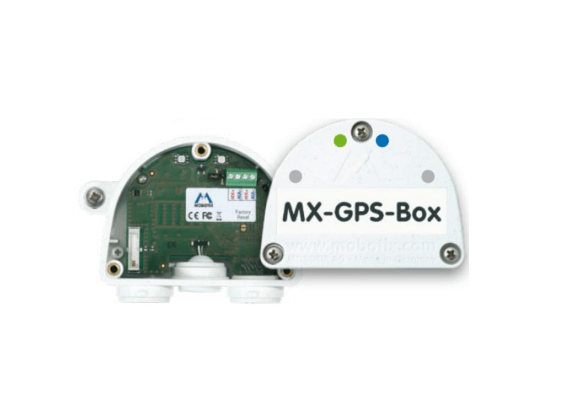

Weatherproof GPS time base for MOBOTIX systems (-30 to +60 °C / -22 to +140 °F; IP65) Includes outdoor temperature and illumination sensors. Connects via 2-wire cable (not with Q24, D24, M24).
• GPS time base for MOBOTIX cameras with MxBus (not with Q24, D24, M24)
• New camera alarms available (position, speed, illumination, temperature)
• Remote installation (max. 50 m/55 yd wire length)
• Complete set including mounting supplies
Article No: MX-OPT-GPS1-EXT

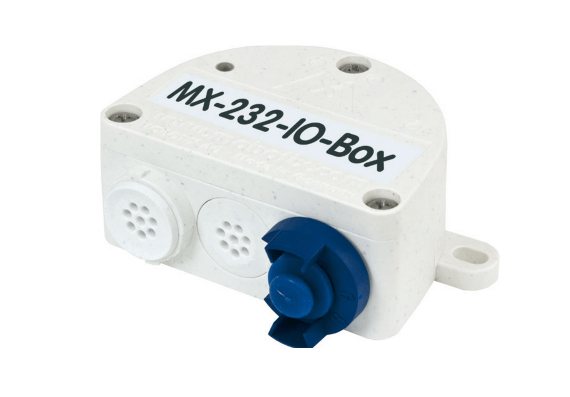

Weatherproof signal input/output (-30 to +60 °C / -22 to +140 °F; IP65). Connection of external sensors and switching of external devices via MOBOTIX cameras; RS232 interface, connection to camera using USB or MxBus.
• 2 self-powered inputs for connecting sensors
• 2 outputs: 1 powered output, 1 isolated relay output (can be switched to second powered output)
• RS232 interface when using MOBOTIX USB cable to connect to camera
• Not for Basic models
Article No: MX-OPT-RS1-EXT
