The new mount, which is certified according to IP66, is easy to set up and can be used with all 5 MP sensor modules for the S15D. The dome can be adjusted manually and features three axes that allow it to compensate for sideway tilt and to re-align the image horizon horizontally when mounted to a wall.
• Manually adjustable dome mount for one sensor module (not included)
• Features three axes that allow it to compensate for sideway tilt and to re-align the image horizon horizontally when mounted to a wall
• Suitable for all available sensor modules for S14D/S15D (MX-SM-Dxx or MX-SM-Nxx)
• Concealed cabling, weatherproof from -30 to +60°C/-22 to 140°F (IP66)
• Suitable for ceiling or wall installation
Article No: MX-PTMount-OPT-PW, PTMount white
Article No: MX-OPT-RS1-EXT, PTMount black

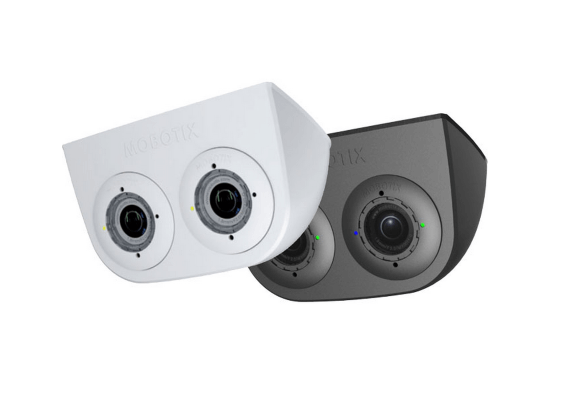

With the DualMount two sensor modules are positioned directly next to each other and in parallel. This orientation of the sensor modules for the same area being surveilled makes the S14D/S15D a suitable camera for day and night use – the same image area can be seen as a color image during the day and as a black/white image at night. The DualMount can be used with all available sensor modules and enables an installation of the lenses on the ceiling with a downward tilt of 25°. The DualMount can also be installed outdoors, e.g., under eaves, bridges, etc.
• For surveillance of one area with two sensor modules (in particular, for day and night)
• All available sensor modules S14D or S15D can be installed in the DualMount(not included)
• Concealed cabling, weatherproof from -30 to +60 °C (IP65)
• Suitable for ceiling installation, with a 25° tilt of the lenses
Article No: MX-FLEX-OPT-DM-PW, DualMount white
Article No: MX-FLEX-OPT-DM-BL, DualMount black

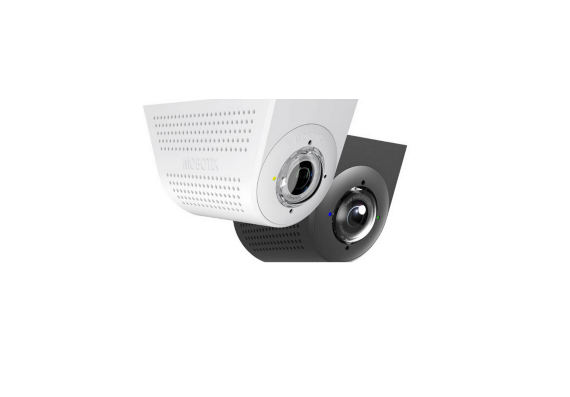

Installing two sensor modules that are pointing in opposite directions in long and narrow spaces (e.g., buses, air planes or trains) delivers double hemispheric images of up to 6 megapixels that, in terms of sharpness of detail, significantly outperforms a single hemispheric camera with just one lens. For these kinds of installations, MOBOTIX offers the SurroundMount. The 25° tilt of the two sensor modules on the SurroundMount allows the area directly underneath them to be captured without blind spots.
• For surveillance of long and narrow spaces (e.g., bus, train, hallway, etc.) without blind spots
• Two sensor modules can be integrated in the mount S14D or S15D(not included)
• Concealed cabling, weatherproof from -30 to +60 °C (IP65)
• Suitable for ceiling installation, with a 25° tilt of the lenses
• The SurroundMount can only be used with the following sensor modules (day or night):
1. L11, L22, L43 (S14D)
2. L12, L25, L51 (S15D)
Article No: MX-FLEX-OPT-SM-PW, SurroundMount white
Article No: MX-FLEX-OPT-SM-BL, SurroundMount black

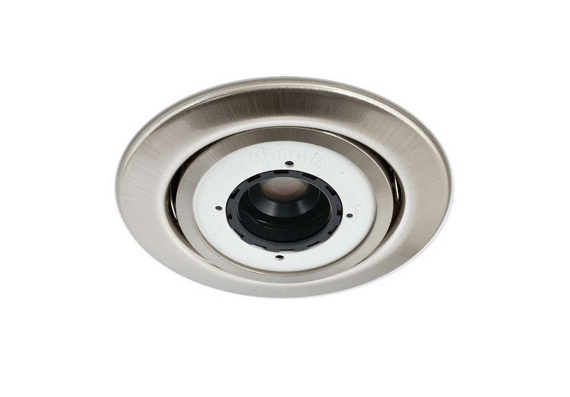

With the HaloMount a sensor module can be integrated in an installation mount, that can also be used for lighting equipment (QR-CBC/MR16 LED Sharp Array 4/6 W). The mounts are available in five colors (white/black/matt chrome/chrome/bruched nickel).
• Suitable for all sensor modules S14D and S15D(not included)
• Flexible setting of inner ring, sensor module can be tilted up to 20°
• High-quality metal design, available in five colors:
1. White
2. Black
3. Chrome
4. Matt chrome
5. Brushed nickel
Article No: MX-HALO-EXT-PW, HaloMount white
Article No: MX-HALO-EXT-BL, HaloMount black
Article No: MX-HALO-EXT-CO, HaloMount chrome
Article No: MX-HALO-EXT-CM, HaloMount matt chrom
Article No: MX-HALO-EXT-NG, HaloMount brushed nickel

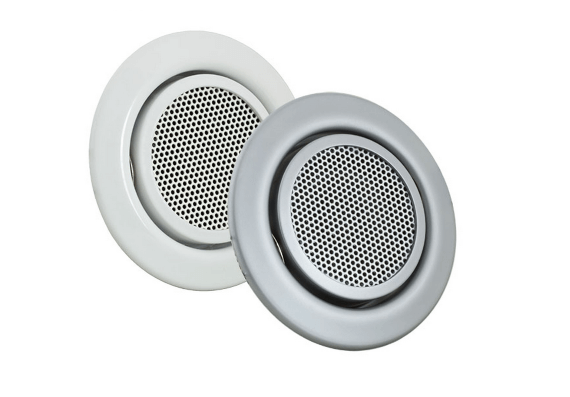

SpeakerMount is a high-quality speaker available in white or matt chrome finish. It is directly connected to the camera housing via a two-wire cable without an additional power supply unit being needed. In connection with the microphone that is integrated into the sensor module of every S14D/S15D, it turns those cameras into a two-way communication system. The tiltable speaker is integrated into the HaloMount and can be mounted easily and neatly in ceilings or walls (not suited for unprotected outdoor usage because of humidity!).
• Integrated speaker incl. mount, white or matt chrome
• Suitable for the installation in ceilings or walls, indoor (IP20)
• Compatible with all FlexMount cameras (mono and dual)
• Direct connection via two-wire cable, no additional power supply unit needed
• Inner ring with speaker can be tilted up to 20°
Technical data:
1. Temperature rage: 0 to +60 °C
2. IP code: IP20
3. Compatible with all FlexMount cameras (mono and dual)
4. impedance: 8 ohm
5. Connection type: two-wired strand, clamp included
Article No: MX-HALO-SP-EXT-PW, SpeakerMount white
Article No: MX-HALO-SP-EXT-CM, SpeakerMount matt chrome

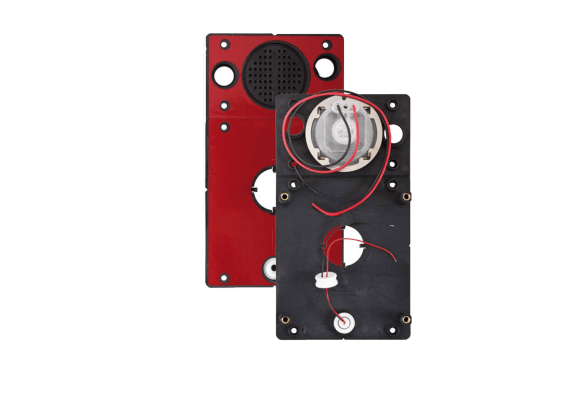

The AudioMount is a mounting adapter for the S14M and S15M cameras allowing attachment to thin and smooth surfaces (e.g., stainless steel plate, mailbox, etc.) using an adhesive film on the backside of the AudioMount. Speaker and microphone are included so that the AudioMount can provide full intercom functionality.
• Fast, easy and concealed installation using adhesive tape (e.g. behind stainless steel plate)
• Built-in loudspeaker and microphone, including a connection cable
• Use camera as a door station by connecting the bell module (firmware 4.1.9 and higher)
• Suitable for FlexMount mono cameras S14M and S15M
Using the appropriate MOBOTIX accessories, you can also use the FlexMount camera in conjunction with the AudioMount as a Hemispheric Door Station (door station function with firmware 4.1.9 and higher). A description can be found in the S15 Camera Manual, chapter "Setting up an S15 FlexMount as a Door Station". This description also applies to S14 cameras (with update to firmware 4.1.9 and higher).
The AudioMount is constructed for sheet metals with a 3 mm thickness. If the material is less than 2,4 mm thick, additional washers have to be put between the mounting pegs and the back of the S15, so that the dome of the camera lens attains its optimal position.
Article No: MX-FLEX-OPT-AM-BL
