For FlexMount S15D

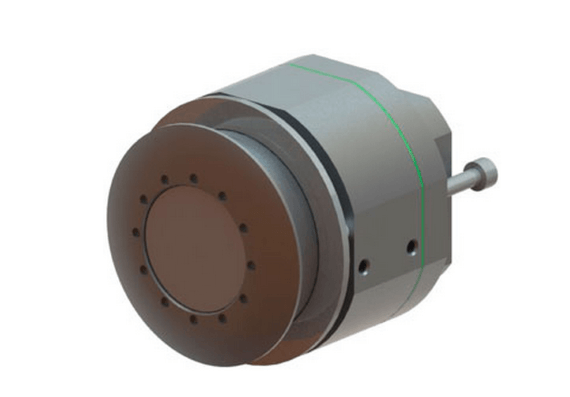

• Enhanced S15D system solution based on the latest MOBOTIX thermografic image technology
• Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• Can be mounted in a weatherproof way without additional accessories
• Protection class IP66, ambient temperature range: -30°C to +60°C/-22°F to +140°F
• Housing: black anodized aluminum
In combination with the camera firmware version 4.2.1.43 or higher, every previously delivered S15D can operate with the new thermal sensor modules and be converted into a high-end thermographic camera.
Article No: MX-SM-Thermal-L43, Thermal sensor module L43
Article No: MX-SM-Thermal-L65, Thermal sensor module L65
Article No: MX-SM-Thermal-L135, Thermal sensor module L135

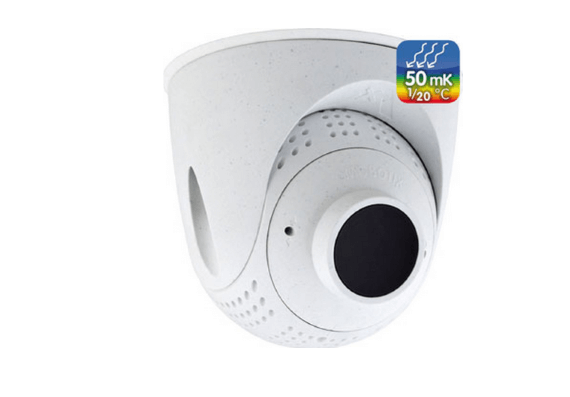

• Manually adjustable dome mount with integrated thermal sensor module
• Highly sensitive thermal image sensor: NETD typ. 50 mK (equal to 0.05 °C, or 0.09 °F), IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second, MTBF > 80.000 hours
• Features three axes that allow it to compensate for sideway tilt and to re-align the image horizon horizontally when mounted to a wall
• Concealed cabling (2 m sensor cable included), weatherproof from -30 to +60°C/-22 to 140°F
• Robust housing (PBT, color: white), IP65, IK04
Note: The thermal sensor modules are connected to the S15D camera housing (MX-S15D-Sec), which is available as an option, using the two-meter sensor cable that is already connected to the PTMount-Thermal. The regular S15D sensor cables available in three different lengths are not suitable for use here.
Article No: MX-SM-PTMount-Thermal-L43-PW, with lens L43
Article No: MX-SM-PTMount-Thermal-L65-PW, with lens L65
Article No: MX-SM-PTMount-Thermal-L135-PW, with lens L135
| Lens | Type | Angle [HxV] | Image width x image height [In a distance of 10m] |
|---|---|---|---|
| L23-F1.8 | Super Wide Angle 92° | 92° x 68° | 20.7 m x 13.5 m |
| L25-F1.8 | Super Wide Angle 82° | 82° x 61° | 17.4 m x 11.9 m |
| L38-F1.8 | Wide Angle 55° | 55° x 41° | 10.3 m x 7.5 m |
| L51-F1.8 | Wide Angle 40° | 40° x 30° | 7.2 m x 5.4 m |
| L76-F1.8 | Tele 27° | 27° x 20° | 4.9 m x 3.6 m |
| L160-F1.8 | Tele 13° | 13° x 10° | 2.3 m x 1.7 m |

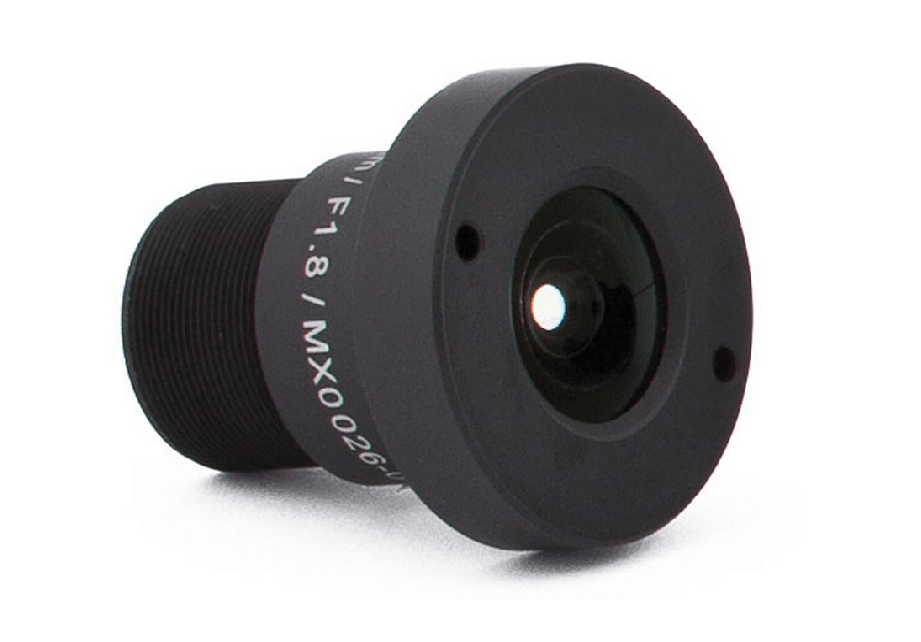

Note: In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.

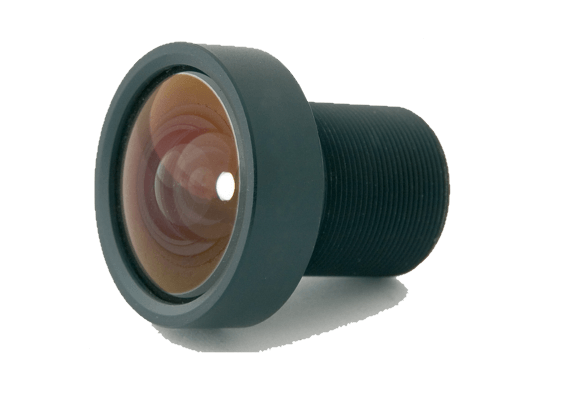

Article No: MX-OPT-F1.8-L20-L23, L23 Super Wide Angle
Article No: MX-OPT-F1.8-L22-L25, L25 Super Wide Angle
Article No: MX-OPT-F1.8-L32-L38, L38 Wide Angle
Article No: MX-OPT-F1.8-L43-L51, L51 Wide Angle
Article No: MX-OPT-F1.8-L65-L76, L76 Tele
Article No: MX-OPT-F1.8-L135-L160, L160 Tele
| Lens | Type | Angle [HxV] | Focal Length [35mm equivalent] | Image width x image height [In a distance of 10m] |
|---|---|---|---|---|
| L25 | Super Wide Angle 82° | 82° x 61° | f = 4 mm (25 mm) | 17.4 m x 11.9 m |
| L38 | Wide Angle 55° | 55° x 41° | f = 6 mm ( 38 mm) | 10.3 m x 7.5 m |
| L51 | Wide Angle 40° | 40° x 30° | f = 8 mm (51 mm) | 7.2 m x 5.4 m |
| L76 | Tele 27° | 27° x 20° | f = 12 mm (76 mm) | 4.9 m x 3.6 m |
| L160 | Tele 13° | 13° x 10° | f = 25 mm (160 mm) | 2.3 m x 1.7 m |
| L320 | Super-Tele 7° | 7° x 5° | f = 50 mm (320 mm) | 1.1 m x 0.9 m |
Note:
• In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.
• L320 is for AllroundMono M25 and in connection with long lens cover only.
Article No: MX-OPT-F2.0-L22-L25, L25 Super Wide Angle
Article No: MX-OPT-F2.0-L32-L38, L38 Wide Angle
Article No: MX-OPT-F2.0-L43-L51, L51 Wide Angle
Article No: MX-OPT-F2.0-L65-L76, L76 Tele
Article No: MX-OPT-F2.5-L135-L160, L160 Tele
Article No: MX-OPT-F2.5-L270-L320, L320 Super Tele
| Lens | Type | Angle [HxV] | Focal Length |
|---|---|---|---|
| L20 | Super Wide Angle 105° | 105° x 77° | f = 4 mm( 20 mm) |
| L22 | Super Wide Angle 90° | 90° x 67° | f = 4 mm( 25 mm) |
| L32 | Wide Angle 60° | 60° x 45° | f = 6 mm( 38 mm) |
| L43 | Wide Angle 45° | 45° x 34° | f = 8 mm( 51 mm) |
| L65 | Tele 31° | 31° x 23° | f = 12 mm( 76 mm) |
| L135 | Tele 15° | 15° x 11° | f = 25 mm( 160 mm) |
Note: In the color sensors, the infrared CUT filter is NOT in the lens, but rather already installed in the lens casing in the camera.

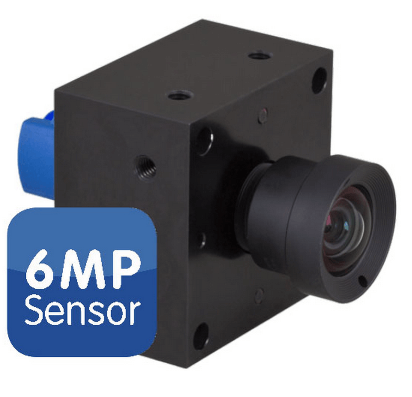

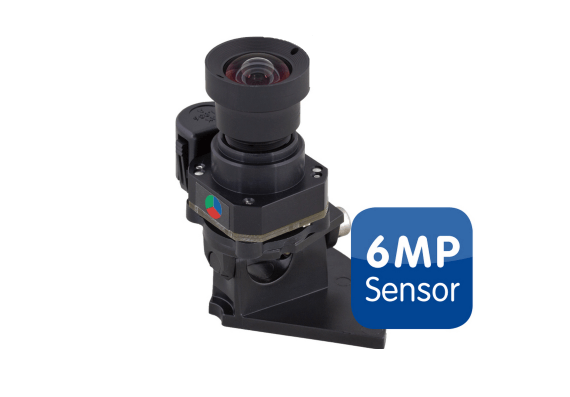

Article No: MX-D15-Module-D20-6MP-F1.8, L20 Super Wide Angle Day, 105°
Article No: MX-D15-Module-D22-6MP-F1.8, L22 Super Wide Angle Day, 90°
Article No: MX-D15-Module-D32-6MP-F1.8, L32 Wide Angle Day, 60°
Article No: MX-D15-Module-D43-6MP-F1.8, L43 Wide Angle Day, 45°
Article No: MX-D15-Module-D65-6MP-F1.8, L65 Tele Day, 31°
Article No: MX-D15-Module-D135-6MP-F1.8, L135 Tele Day, 15°
| Lens | Type | Angle [HxV] | Focal Length |
|---|---|---|---|
| L20 | Super Wide Angle 105° | 105° x 77° | f = 4 mm( 20 mm) |
| L22 | Super Wide Angle 90° | 90° x 67° | f = 4 mm( 25 mm) |
| L32 | Wide Angle 60° | 60° x 45° | f = 6 mm( 38 mm) |
| L43 | Wide Angle 45° | 45° x 34° | f = 8 mm( 51 mm) |
| L65 | Tele 31° | 31° x 23° | f = 12 mm( 76 mm) |
| L135 | Tele 15° | 15° x 11° | f = 25 mm( 160 mm) |

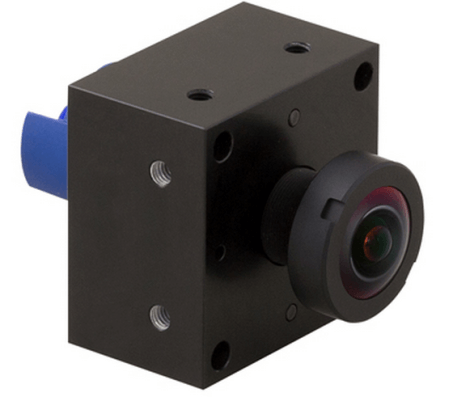

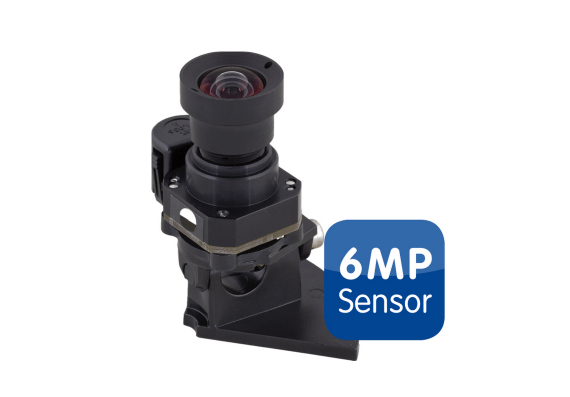

Article No: MX-D15-Module-N20-6MP-F1.8, L20 Super Wide Angle Day, 105°
Article No: MX-D15-Module-N22-6MP-F1.8, L22 Super Wide Angle Day, 90°
Article No: MX-D15-Module-N32-6MP-F1.8, L32 Wide Angle Day, 60°
Article No: MX-D15-Module-N43-6MP-F1.8, L43 Wide Angle Day, 45°
Article No: MX-D15-Module-N65-6MP-F1.8, L65 Tele Day, 31°
Article No: MX-D15-Module-N135-6MP-F1.8, L135 Tele Day, 15°
| Lens | Type | Angle [HxV] | Focal Length |
|---|---|---|---|
| L20 | Super Wide Angle 105° | 105° x 77° | f = 4 mm( 20 mm) |
| L22 | Super Wide Angle 90° | 90° x 67° | f = 4 mm( 25 mm) |
| L32 | Wide Angle 60° | 60° x 45° | f = 6 mm( 38 mm) |
| L43 | Wide Angle 45° | 45° x 34° | f = 8 mm( 51 mm) |
| L65 | Tele 31° | 31° x 23° | f = 12 mm( 76 mm) |
| L135 | Tele 15° | 15° x 11° | f = 25 mm( 160 mm) |

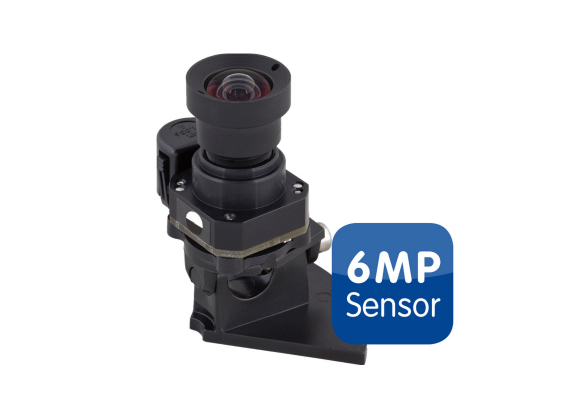

Article No: MX-D15-Module-N20-LPF-6MP-F1.8, L20 Super Wide Angle Night, LPF, 105°
Article No: MX-D15-Module-N22-LPF-6MP-F1.8, L22 Super Wide Angle Night, LPF, 90°
Article No: MX-D15-Module-N32-LPF-6MP-F1.8, L32 Wide Angle Night, LPF, 60°
Article No: MX-D15-Module-N43-LPF-6MP-F1.8, L43 Wide Angle Night, LPF, 45°
Article No: MX-D15-Module-N65-LPF-6MP-F1.8, L65 Tele Night, LPF, 31°
Article No: MX-D15-Module-N135-LPF-6MP-F1.8, L135 Tele Night, LPF, 15°
| Lens | Type | Angle [HxV] | Focal Length [35mm equivalent] | Image width x image height [In a distance of 10m] |
|---|---|---|---|---|
| L25 | Super Wide Angle 82° | 82° x 61° | f = 4 mm (25 mm) | 17.4 m x 11.9 m |
| L38 | Wide Angle 55° | 55° x 41° | f = 6 mm ( 38 mm) | 10.3 m x 7.5 m |
| L51 | Wide Angle 40° | 40° x 30° | f = 8 mm (51 mm) | 7.2 m x 5.4 m |
| L76 | Tele 27° | 27° x 20° | f = 12 mm (76 mm) | 4.9 m x 3.6 m |
| L160 | Tele 13° | 13° x 10° | f = 25 mm (160 mm) | 2.3 m x 1.7 m |

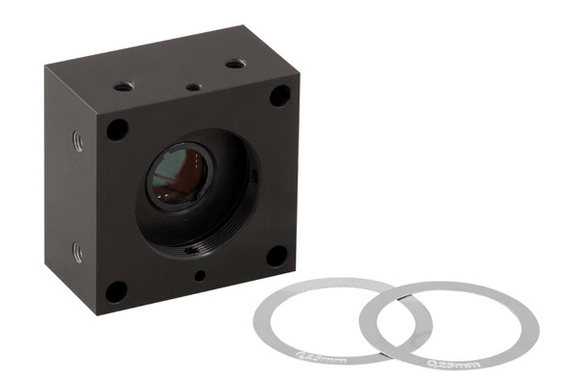

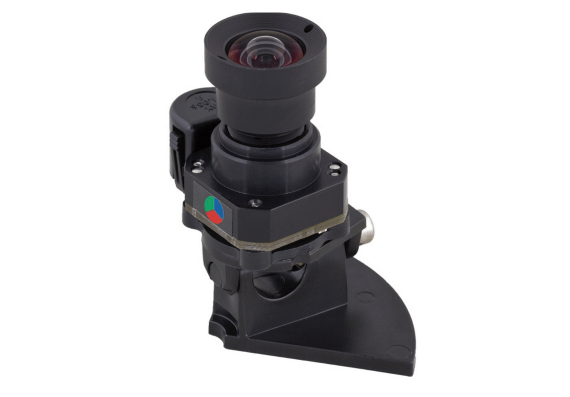

Article No: MX-D15-Module-D25-F1.8, L25 Super Wide Angle, Day
Article No: MX-D15-Module-D38-F1.8, L38 Wide Angle, Day
Article No: MX-D15-Module-D51-F1.8, L51 Wide Angle, Day
Article No: MX-D15-Module-D76-F1.8, L76 Tele, Day
Article No: MX-D15-Module-D160-F1.8, L160 Tele, Day
| Lens | Type | Angle [HxV] | Focal Length [35mm equivalent] | Image width x image height [In a distance of 10m] |
|---|---|---|---|---|
| L25 | Super Wide Angle 82° | 82° x 61° | f = 4 mm (25 mm) | 17.4 m x 11.9 m |
| L38 | Wide Angle 55° | 55° x 41° | f = 6 mm ( 38 mm) | 10.3 m x 7.5 m |
| L51 | Wide Angle 40° | 40° x 30° | f = 8 mm (51 mm) | 7.2 m x 5.4 m |
| L76 | Tele 27° | 27° x 20° | f = 12 mm (76 mm) | 4.9 m x 3.6 m |
| L160 | Tele 13° | 13° x 10° | f = 25 mm (160 mm) | 2.3 m x 1.7 m |

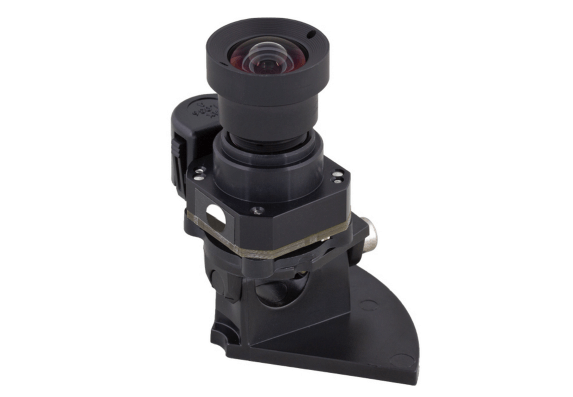

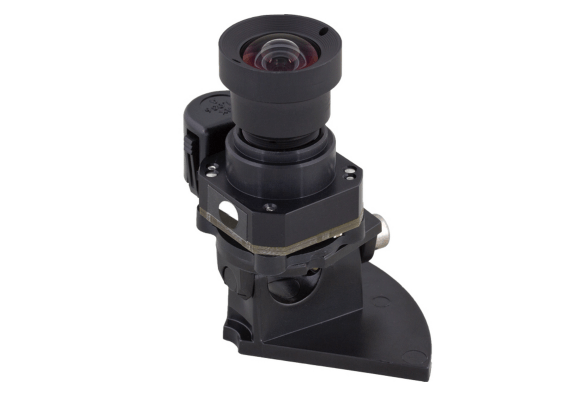

Article No: MX-D15-Module-N25-F1.8, L25 Super Wide Angle, Night
Article No: MX-D15-Module-N38-F1.8, L38 Wide Angle, Nigh
Article No: MX-D15-Module-N51-F1.8, L51 Wide Angle, Nigh
Article No: MX-D15-Module-N76-F1.8, L76 Tele, Nigh
Article No: MX-D15-Module-N160-F1.8, L160 Tele, Nigh
| Lens | Type | Angle [HxV] | Focal Length [35mm equivalent] | Image width x image height [In a distance of 10m] |
|---|---|---|---|---|
| L25 | Super Wide Angle 82° | 82° x 61° | f = 4 mm (25 mm) | 17.4 m x 11.9 m |
| L38 | Wide Angle 55° | 55° x 41° | f = 6 mm ( 38 mm) | 10.3 m x 7.5 m |
| L51 | Wide Angle 40° | 40° x 30° | f = 8 mm (51 mm) | 7.2 m x 5.4 m |
| L76 | Tele 27° | 27° x 20° | f = 12 mm (76 mm) | 4.9 m x 3.6 m |
| L160 | Tele 13° | 13° x 10° | f = 25 mm (160 mm) | 2.3 m x 1.7 m |
Article No: MX-D15-Module-N25-LPF-F1.8, L25 Super Wide Angle Night, LPF
Article No: MX-D15-Module-N38-LPF-F1.8, L38 Wide Angle Night, LPF
Article No: MX-D15-Module-N51-LPF-F1.8, L51 Wide Angle Night, LPF
Article No: MX-D15-Module-N76-LPF-F1.8, L76 Tele Night, LPF
Article No: MX-D15-Module-N160-LPF-F1.8, L160 Tele Night, LPF

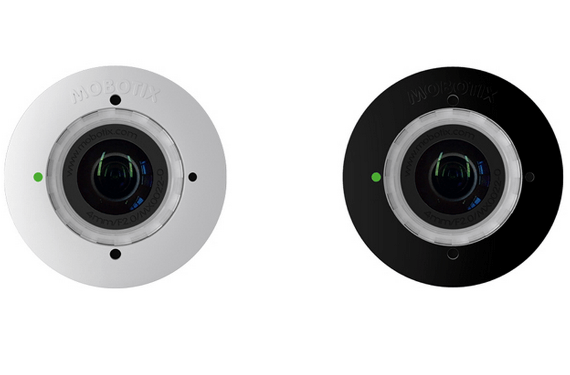

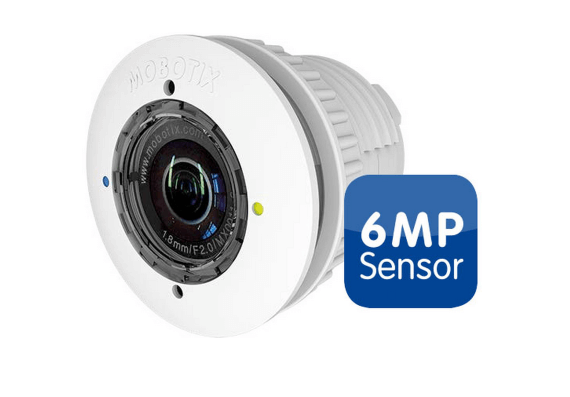

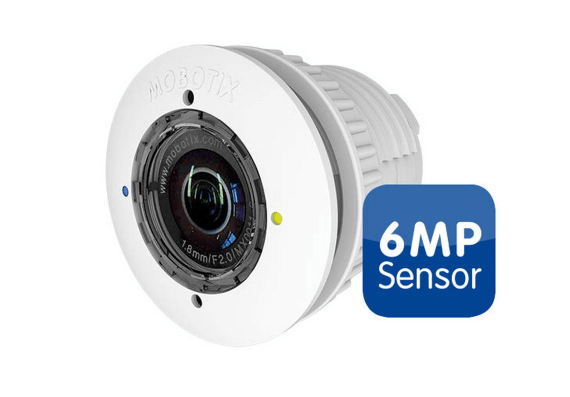

Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
Article No: MX-SM-D10-PW-6MP, Sensor module day, L10, white
Article No: MX-SM-D20-PW-6MP-F1.8, Sensor module day, L20, white
Article No: MX-SM-D22-PW-6MP-F1.8, Sensor module day, L22, white
Article No: MX-SM-D32-PW-6MP-F1.8, Sensor module day, L32, white
Article No: MX-SM-D43-PW-6MP-F1.8, Sensor module day, L43, white
Article No: MX-SM-D65-PW-6MP-F1.8, Sensor module day, L65, white
Article No: MX-SM-D135-PW-6MP-F1.8, Sensor module day, L135, white
Article No: MX-SM-D270-PW-6MP, Sensor module day, L270, white
Article No: MX-SM-D10-BL-6MP, Sensor module day, L10, black
Article No: MX-SM-D20-BL-6MP-F1.8, Sensor module day, L20, black
Article No: MX-SM-D22-BL-6MP-F1.8, Sensor module day, L22, black
Article No: MX-SM-D32-BL-6MP-F1.8, Sensor module day, L32, black
Article No: MX-SM-D43-BL-6MP-F1.8, Sensor module day, L43, black
Article No: MX-SM-D65-BL-6MP-F1.8, Sensor module day, L65, black
Article No: MX-SM-D135-BL-6MP-F1.8, Sensor module day, L135, black
Article No: MX-SM-D270-BL-6MP, Sensor module day, L270, black

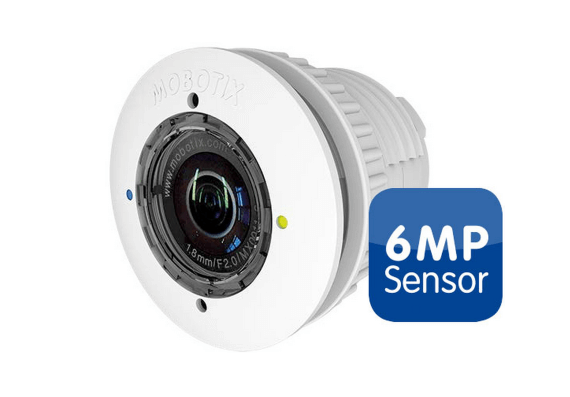

Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
Article No: MX-SM-N10-PW-6MP, Sensor module night, L10, white
Article No: MX-SM-N20-PW-6MP-F1.8, Sensor module night, L20, white
Article No: MX-SM-N22-PW-6MP-F1.8, Sensor module night, L22, white
Article No: MX-SM-N32-PW-6MP-F1.8, Sensor module night, L32, white
Article No: MX-SM-N43-PW-6MP-F1.8, Sensor module night, L43, white
Article No: MX-SM-N65-PW-6MP-F1.8, Sensor module night, L65, white
Article No: MX-SM-N135-PW-6MP-F1.8, Sensor module night, L135, white
Article No: MX-SM-N270-PW-6MP, Sensor module night, L270, white
Article No: MX-SM-N10-BL-6MP, Sensor module night, L10, black
Article No: MX-SM-N20-BL-6MP-F1.8, Sensor module night, L20, black
Article No: MX-SM-N22-BL-6MP-F1.8, Sensor module night, L22, black
Article No: MX-SM-N32-BL-6MP-F1.8, Sensor module night, L32, black
Article No: MX-SM-N43-BL-6MP-F1.8, Sensor module night, L43, black
Article No: MX-SM-N65-BL-6MP-F1.8, Sensor module night, L65, black
Article No: MX-SM-N135-BL-6MP-F1.8, Sensor module night, L135, black
Article No: MX-SM-N270-BL-6MP, Sensor module day, night, black
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
• LPF version

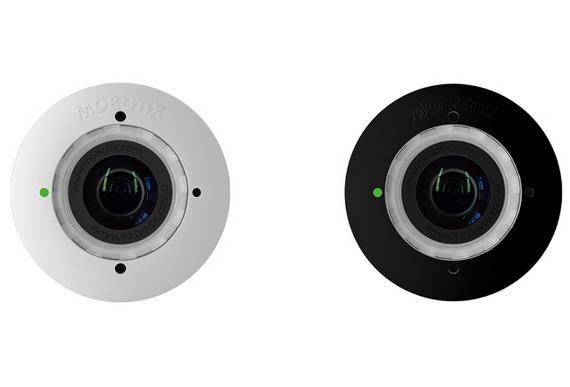

The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Article No: MX-SM-N10-LPF-PW-6MP, Sensor module night LPF, L10, white
Article No: MX-SM-N20-LPF-PW-6MP-F1.8, Sensor module night LPF, L20, white
Article No: MX-SM-N22-LPF-PW-6MP-F1.8, Sensor module night LPF, L22, white
Article No: MX-SM-N32-LPF-PW-6MP-F1.8, Sensor module night LPF, L32, white
Article No: MX-SM-N43-LPF-PW-6MP-F1.8, Sensor module night LPF, L43, white
Article No: MX-SM-N65-LPF-PW-6MP-F1.8, Sensor module night LPF, L65, white
Article No: MX-SM-N135-LPF-PW-6MP-F1.8, Sensor module night LPF, L135, white
Article No: MX-SM-N270-LPF-PW-6MP, Sensor module night LPF, L270, white
Article No: MX-SM-N10-LPF-BL-6MP, Sensor module night LPF, L10, black
Article No: MX-SM-N20-LPF-BL-6MP-F1.8, Sensor module night LPF, L20, black
Article No: MX-SM-N22-LPF-BL-6MP-F1.8, Sensor module night LPF, L22, black
Article No: MX-SM-N32-LPF-BL-6MP-F1.8, Sensor module night LPF, L32, black
Article No: MX-SM-N43-LPF-BL-6MP-F1.8, Sensor module night LPF, L43, black
Article No: MX-SM-N65-LPF-BL-6MP-F1.8, Sensor module night LPF, L65, black
Article No: MX-SM-N135-LPF-BL-6MP-F1.8, Sensor module night LPF, L135
Article No: MX-SM-N270-LPF-BL-6MP, Sensor module night LPF, L270, black
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Article No: MX-SM-D12-PW, Sensor module day, L12, white
Article No: MX-SM-D12-BL, Sensor module day, L12, black
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
• also available as LPF version
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Night sensor modules with Long-Pass Filter (LPF):
All night sensor modules (N12 to N160, black/white) can optionally be ordered with an LPF (Long-Pass Filter) special lens that features an infrared sensor for ideal license plate identification during any lighting condition. All LPF sensor modules (except for L12) can be equipped with an additional polarization filter.
Article No: MX-SM-N12-PW, Sensor module night L12, white
Article No: MX-SM-N12-BL, Sensor module night, L12, black
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
• LPF version
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Article No: MX-SM-N12-LPF-PW, Sensor module night, L12, white, with LPF
Article No: MX-SM-N12-LPF-BL, Sensor module night, L12, black, with LPF
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Article No: MX-SM-D25-PW-F1.8, SSensor module day, L25, white
Article No: MX-SM-D38-PW-F1.8, Sensor module day, L38, white
Article No: MX-SM-D51-PW-F1.8, Sensor module day, L51, white
Article No: MX-SM-D76-PW-F1.8, Sensor module day, L76, white
Article No: MX-SM-D160-PW-F1.8, Sensor module day, L160, white
Article No: MX-SM-D25-BL-F1.8, Sensor module day, L25, black
Article No: MX-SM-D38-BL-F1.8, Sensor module day, L38, black
Article No: MX-SM-D51-BL-F1.8, Sensor module day, L51, black
Article No: MX-SM-D76-BL-F1.8, Sensor module day, L76, black
Article No: MX-SM-D160-BL-F1.8, Sensor module day, L160, black
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
• also available as LPF version
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Night sensor modules with Long-Pass Filter (LPF):
All night sensor modules (N12 to N160, black/white) can optionally be ordered with an LPF (Long-Pass Filter) special lens that features an infrared sensor for ideal license plate identification during any lighting condition. All LPF sensor modules (except for L12) can be equipped with an additional polarization filter.
Article No: MX-SM-N25-PW-F1.8, Sensor module night, L25, white
Article No: MX-SM-N38-PW-F1.8, Sensor module night, L38, white
Article No: MX-SM-N51-PW-F1.8, Sensor module night, L51, white
Article No: MX-SM-N76-PW-F1.8, Sensor module night, L76, white
Article No: MX-SM-N160-PW-F1.8, Sensor module night, L160, white
Article No: MX-SM-N25-BL-F1.8, Sensor module night, L25, black
Article No: MX-SM-N38-BL-F1.8, Sensor module night, L38, black
Article No: MX-SM-N51-BL-F1.8, Sensor module night, L51, black
Article No: MX-SM-N76-BL-F1.8, Sensor module night, L76, black
Article No: MX-SM-N160-BL-F1.8, Sensor module night, L160, black
Sensor module
• for S15 and M15
• with integrated lens, image sensor and microphone
• preassembled for ceiling or wall mounting
• easy connection to the housing via quick connector
• protection class: IP66
• LPF version
The visible external part of the sensor module is available in white and black, enabling it to blend into most installation environments indoors and outdoors.
Article No: MX-SM-N25-LPF-PW-F1.8, Sensor module night, L25, white, with LPF
Article No: MX-SM-N38-LPF-PW-F1.8, Sensor module night, L38, white, with LPF
Article No: MX-SM-N51-LPF-PW-F1.8, Sensor module night, L51, white, with LPF
Article No: MX-SM-N76-LPF-PW-F1.8, Sensor module night, L76, white, with LPF
Article No: MX-SM-N160-LPF-PW-F1.8, Sensor module night, L160, white, with LPF
Article No: MX-SM-N25-LPF-BL-F1.8, Sensor module night, L25, black, with LPF
Article No: MX-SM-N38-LPF-BL-F1.8, Sensor module night, L38, black, with LPF
Article No: MX-SM-N51-LPF-BL-F1.8, Sensor module night, L51, black, with LPF
Article No: MX-SM-N76-LPF-BL-F1.8, Sensor module night, L76, black, with LPF
Article No: MX-SM-N160-LPF-BL-F1.8, Sensor module night, L160, black, with LPF

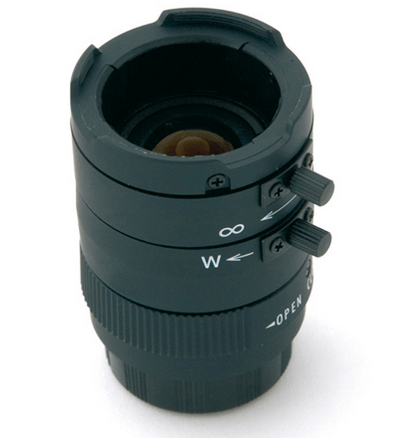

• Suitable for S15D-BlockflexMount und M25M with CS-Mount
• Manually adjustable focal length (nominal: 4.5 to 10 mm)
• Horizontal image angles: 32° to 75° (5MP sensor); 39° to 89° (6MP sensor)
• Vertical image angles: 25° to 56° (5MP sensor); 29° to 65° (6MP sensor)
Article No: MX-OPTCS-L24-54

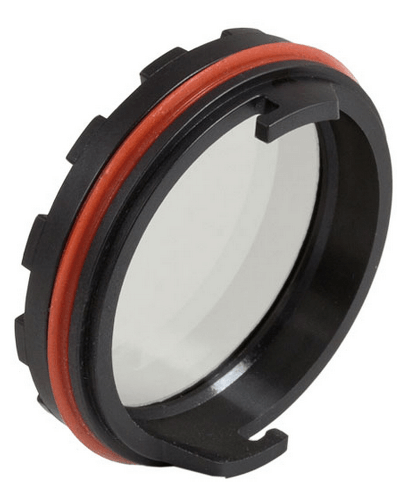

When using the non-hemispheric sensor modules L20 to L320, you can replace the lens cover (made of glass) with a polarization filter.
Example: Recognition of people through the windshield of a car - the filter reduces the mirror reflection. (see also sensor modules)
Article No: MX-SM-OPT-POL

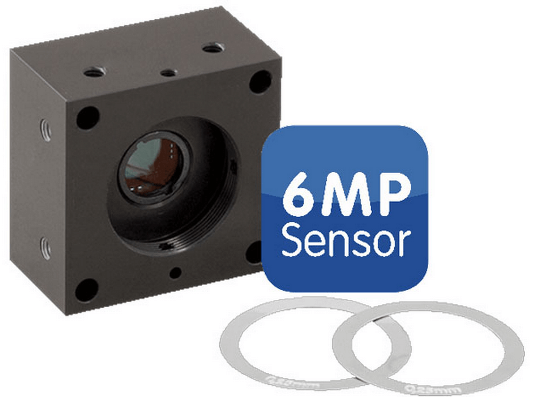

• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-D10-6MP, BlockFlexMount module day, L10
Article No: MX-BFM-MX-D20-6MP-F1.8, BlockFlexMount module day, L20
Article No: MX-BFM-MX-D22-6MP-F1.8, BlockFlexMount module day, L22
Article No: MX-BFM-MX-D32-6MP-F1.8, BlockFlexMount module day, L32
Article No: MX-BFM-MX-D43-6MP-F1.8, BlockFlexMount module day, L43
Article No: MX-BFM-MX-D65-6MP-F1.8, BlockFlexMount module day, L65
Article No: MX-BFM-MX-D135-6MP-F1.8, BlockFlexMount module day, L135
Article No: MX-BFM-MX-D270-6MP, BlockFlexMount module day, L270
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-N10-6MP, BlockFlexMount module night, L10
Article No: MX-BFM-MX-N20-6MP-F1.8, BlockFlexMount module night, L20
Article No: MX-BFM-MX-N22-6MP-F1.8, BlockFlexMount module night, L22
Article No: MX-BFM-MX-N32-6MP-F1.8, BlockFlexMount module night, L32
Article No: MX-BFM-MX-N43-6MP-F1.8, BlockFlexMount module night, L43
Article No: MX-BFM-MX-N65-6MP-F1.8, BlockFlexMount module night L65
Article No: MX-BFM-MX-N135-6MP-F1.8, BlockFlexMount module night, L135
Article No: MX-BFM-MX-N270-6MP, BlockFlexMount module night, L270
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-N20-LPF-F1.8, BlockFlexMount module night, L20, Long-Pass Filter
Article No: MX-BFM-MX-N22-LPF-F1.8, BlockFlexMount module night, L22, Long-Pass Filter
Article No: MX-BFM-MX-N32-LPF-F1.8, BlockFlexMount module night, L32, Long-Pass Filter
Article No: MX-BFM-MX-N43-LPF-F1.8, BlockFlexMount module night, L43, Long-Pass Filter
Article No: MX-BFM-MX-N65-LPF-F1.8, BlockFlexMount module night, L65, Long-Pass Filter
Article No: MX-BFM-MX-N135-LPF-F1.8, BlockFlexMount module night L135, Long-Pass Filter
Article No: MX-BFM-MX-N270-LPF-6MP, BlockFlexMount module night, L270, Long-Pass Filter
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-D12, BlockFlexMount module day, L12
Article No: MX-BFM-MX-D320, BlockFlexMount module day, L320
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-N12, BlockFlexMount module night, L12
Article No: MX-BFM-MX-N76, BlockFlexMount module night, L76
Article No: MX-BFM-MX-N320, BlockFlexMount module night, L320
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-N320-LPF, BlockFlexMount module night, L320, Long-Pass Filter, L12
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-D25-F1.8, BlockFlexMount module day, L25
Article No: MX-BFM-MX-D38-F1.8, BlockFlexMount module day, L38
Article No: MX-BFM-MX-D51-F1.8, BlockFlexMount module day, L51
Article No: MX-BFM-MX-D76-F1.8, BlockFlexMount module day, L76
Article No: MX-BFM-MX-D160-F1.8, BlockFlexMount module day, L160
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-N25-F1.8, BlockFlexMount module night, L25
Article No: MX-BFM-MX-N38-F1.8, BlockFlexMount module night, L38
Article No: MX-BFM-MX-N51-F1.8, BlockFlexMount module night, L51
Article No: MX-BFM-MX-N76-F1.8, BlockFlexMount module night, L76
Article No: MX-BFM-MX-N160-F1.8, BlockFlexMount module night, L160
• For S15D
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-MX-N25-LPF-F1.8, BlockFlexMount module night, L25, Long-Pass Filter
Article No: MX-BFM-MX-N38-LPF-F1.8, BlockFlexMount module night, L38, Long-Pass Filter
Article No: MX-BFM-MX-N51-LPF-F1.8, BlockFlexMount module night, L51, Long-Pass Filter
Article No: MX-BFM-MX-N76-LPF-F1.8, BlockFlexMount module night, L76, Long-Pass Filter
Article No: MX-BFM-MX-N160-LPF-F1.8, BlockFlexMount module night, L160, Long-Pass Filter
• For S15D (lens not included)
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• Suitable for MOBOTIX CSVario lens)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-CS-D-6MP, BlockFlexMount sensor module day, CS mount
Article No: MX-BFM-CS-N-6MP, BlockFlexMount sensor module night, CS mount
• For S15D (lens not included)
• Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
• One or two BlockFlexMount sensor modules are connected to the S15D with a sensor cable just like the standard sensor modules
• Suitable for MOBOTIX CSVario lens)
• Mixed operation with the BlockFlexMount and standard sensor module possible
• BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
• Protection class IP30 (protected against access with a tool)
• Ambient temperature range: 0°C to +50°C/32°F to 122°F
The installation options have been expanded further with the new BlockFlexMount sensor modules. Because the image sensor (color or B/W) and lens (from telephoto to Hemispheric plus CSVario) is integrated in a robust aluminum block with prepared mounting holes and surfaces suitable for simple mounting, the concealed mounting of a MOBOTIX HiRes camera can be carried out quickly and easily in devices such as ATMs, machines for function and production monitoring, or very discreetly in paneling, columns etc.
Article No: MX-BFM-CS-D, BlockFlexMount sensor module day, CS mount
Article No: MX-BFM-CS-N, BlockFlexMount sensor module night, CS mount
Article No: MX-BFM-CS-N-LPF, BlockFlexMount sensor module night, CS mount, Long-Pass Filter
tailored smart systems www.meshmade.com/
Phone: +357 7000 6374
Address: Kermia K6, #1 E.Pallikarides Street & 28th October Ave., 3106 Limassol, CYPRUS
Email: info@mobotixcyprus.com
