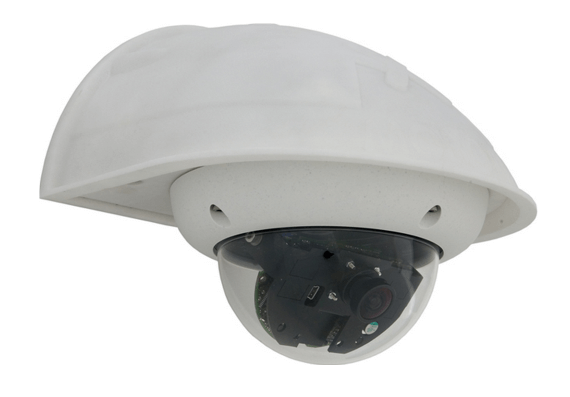

Outdoor Wall Mount

• For D25 IT/Sec and Q25 Sec and ExtIO

• Weatherproof (IP65) wall mount

• Covers RJ45 wall outlets

• Space for expansion modules (battery, UMTS, WLAN, etc.)

• Easily mounted to poles using pole mount

The Wall Mount is the ideal solution for mounting MOBOTIX dome cameras D22/D24 IT/Sec, Q22/Q24 Sec or ExtIO to walls for indoor and outdoor applications. The camera is absolutely dustproof and resistant against water jets (IP65). The wall mount also covers RJ45 wall outlets and has ample space for additional modules.

Article No: MX-OPT-WH

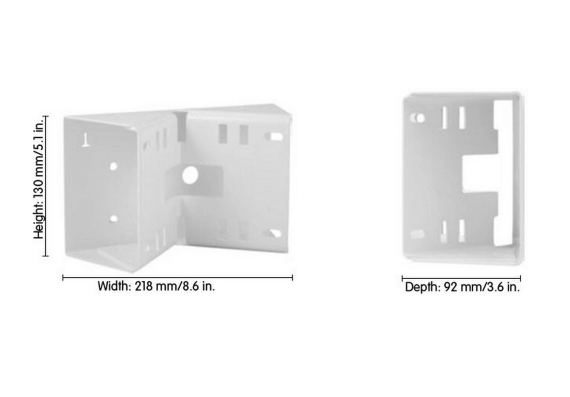

Pole Mount For Use With Wall Mount MX-OPT-WH

• Fastening for Dome wall mount MX-OPT-WH (for D25 IT/Sec, Q25 Sec and ExtIO)

• 3 mm stainless steel, white

• Delivery includes mounting parts and 2 stainless steel straps for pole diameters of 60 - 180 mm

• Wall mount (MX-OPT-WH) is not included in delivery and has to be ordered separately. Alternatively, a set consisting of pole mount (MX-OPT-MH) and wall mount (MX-OPT-WH) is available

If you would like to mount either the MOBOTIX D22/D24 IT/Sec, Q22/Q24 Sec or ExtIO to a pole, you should consider using the MOBOTIX Pole Mount. This mount can only be used in conjunction with the wall mount. The supplied stainless steel straps allow attaching the mount to poles with diameters between 60 and 180 mm. The Pole Mount is made from 3 mm white powdercoated stainless steel and is just as robust and maintenance-free as the outdoor Wall Mount

Article No: MX-OPT-MH

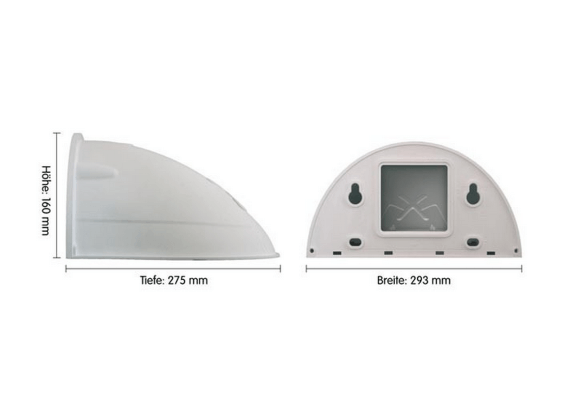

Wall Mount for D15

• Shock-resistant fiberglass-reinforced plastic (PBT), white

• Covers RJ45 outlet

• Ample room inside for extras (WLAN, relay, etc.)

• Polyurethane sealing for mounting to wall

• Includes stainless steel mounting supply, covers and dowels

• DualDome with outdoor wall mount attains protection class IP 65 instead of IP 54

Mounting the camera to a wall allows covering RJ45 wall outlets (without frame) and also allows using a defined network end point. Ideally, the Outdoor Wall Mount is mounted over the tested wall outlet, which provides the connections (network, ISDN, Power over Ethernet) to the camera.

Article No: MX-WH-Dome

Set Pole Mount and Wall Mount

• Pole Mount for fastening of Dome wall mount

• 3 mm stainless steel, white

• Delivery with 2 stainless steel straps for pole diameters of 60 - 180 mm as well as mounting parts

• Wall mount is weather-proof (IP65)

• Covers RJ45 wall outlets

• Space for expansion modules (battery, UMTS, WLAN, etc.)

Article No: MX-OPT-WHMH

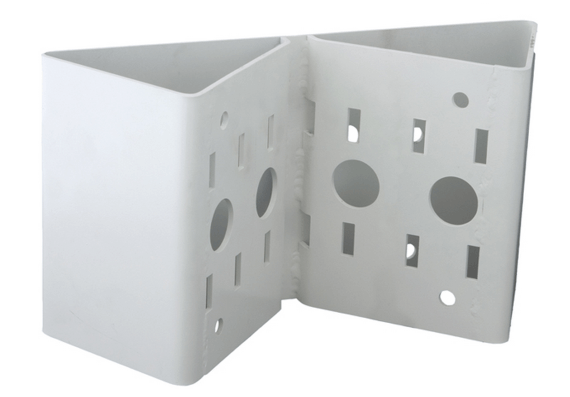

Pole and Corner Mount D15

• Fastening for Dome wall mount

• Also suitable for D14, D12 and D10

• Can be mounted to 90° corners; one DualDome covers two sides

• 3mm stainless steel, white

• Includes screws and stainless steel straps for pole diameters 60-180mm

• Wall mount (MX-WH-Dome) is not included in delivery

Article No: MX-MH-Dome-ESWS

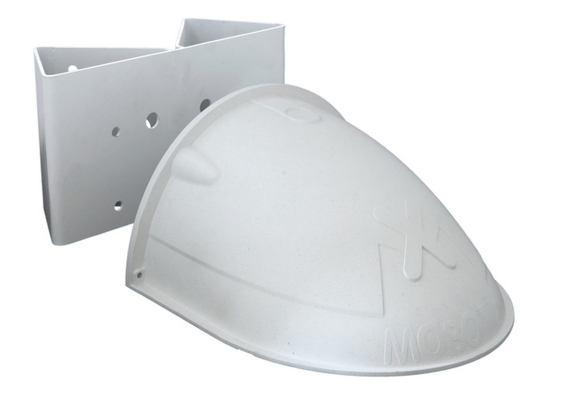

Set Pole/Corner Mount and Wall Mount for D15

• Pole/corner Mount for fastening of dome wall mount

• Can be mounted to 90° corners; one DualDome covers two sides

• 3 mm stainless steel, white

• Delivery with mounting parts and 2 stainless steel straps for pole diameters of 60-180mm

• Wall mount consists of shock-resistant fiberglass-reinforced plastic (PBT), white

• Covers RJ45 wall outlets

• Ample room inside for extras (WiFi, relay, etc.)

• Polyurethane sealing for mounting to wall

• Includes stainless stell mounting parts, covers and dowels

• DualDome with outdoor wall mount attains protection class IP65 instead of IP54

Article No: MX-D14D-OPT-WHMH-Set

Pole Mount

• For M25 and M15

• 3mm stainless steel,white

• Mast or pole mounting

• Pole circumference from 60 to 180mm

• 2 x metal mounting bands, fittings and grommet included

Article No: MX-MH-SecureFlex-ESWS

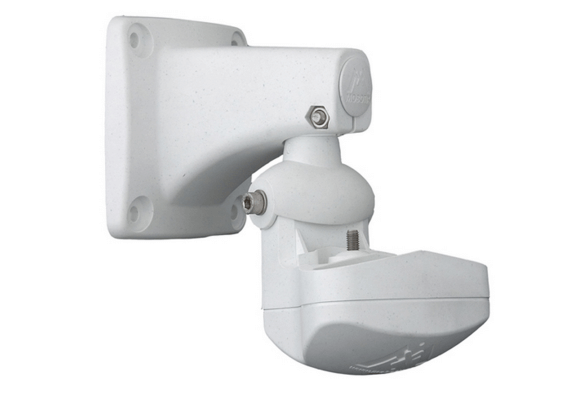

SecureFlex Wall and Ceiling Mount for M12, M10, M1

• Shock-resistant fiberglass-reinforced composite (PBT), white

• Turn/tilt unit with concealed cabling

• Covers RJ45 wall outlets > patented tamper-proof concealed cabling

• Can be turned left/right ± 90°, tilted downwards -70°

• Includes stainless steel mounting set, caps and dowels

• Fits all M12, M10 and M1 cameras

Article No: MX-WH-SecureFlex
